Amaris 500E
Concentrated efficiency
The compact excimer laser from the technology leader

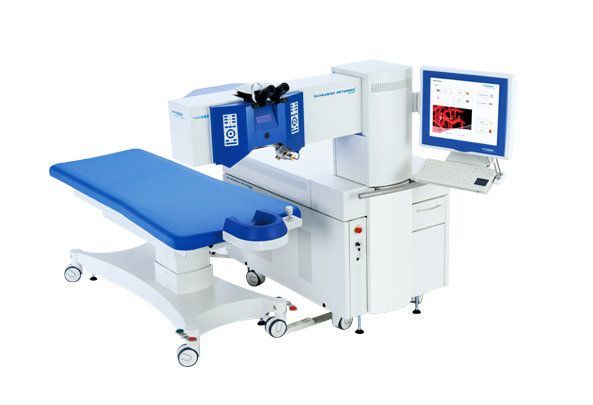

With its 500 Hz repetition rate and 5D eye tracking, the SCHWIND AMARIS 500E is a fast, efficient and precise eye laser system for refractive and therapeutic corneal surgery. The very fine 0.54 mm laser spot it shares with all SCHWIND AMARIS lasers enhances the precision and smooth corneal modelling of this device. It offers all of this in a compact, space-saving package.
The SCHWIND AMARIS 500E can be used with all standard laser treatment methods, including SCHWIND’s touch-free SmartSurfACE with its faster healing and faster vision recovery than with traditional surface treatments.
Fast: 500 Hz pulse rate

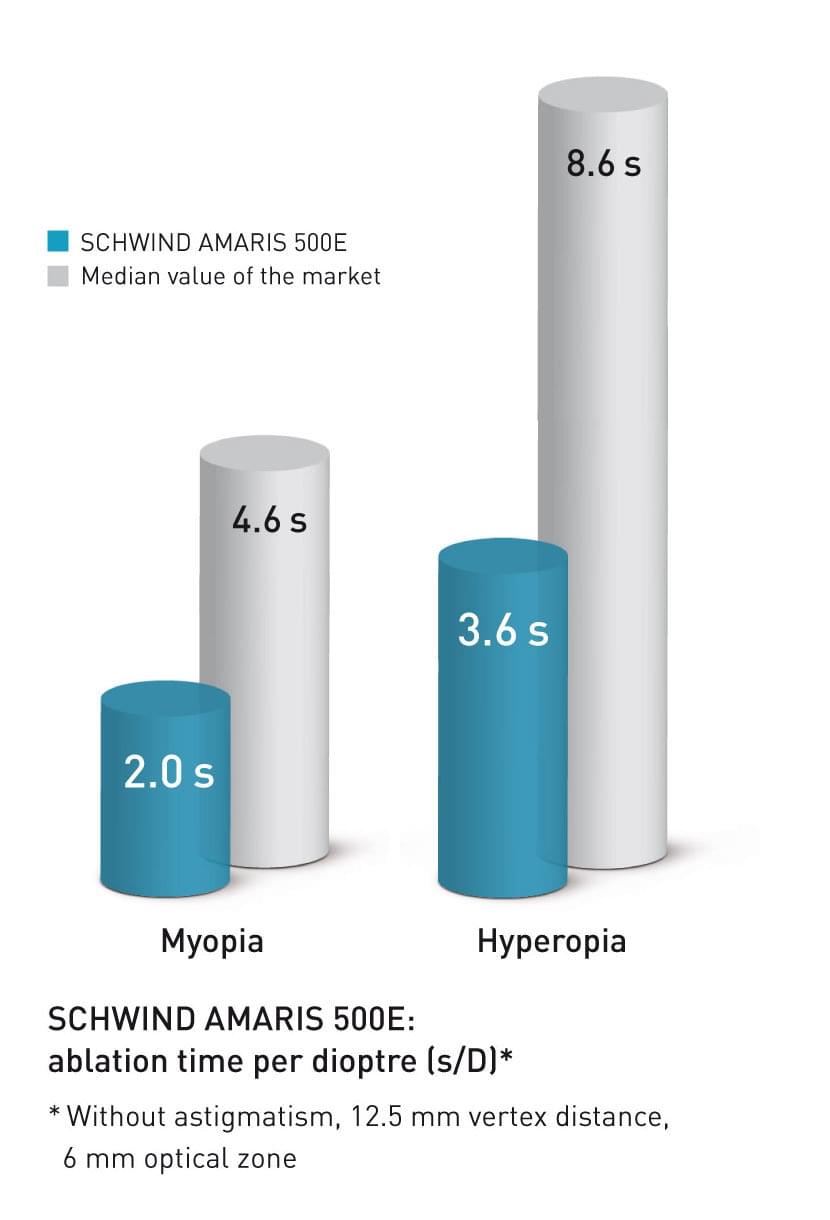

The fast repetition rate and short ablation time of 2.0 seconds per dioptre provide more patient safety and comfort. It is significantly faster than other laser systems on the market. The speed of treatment helps prevent cornea dehydration, since patients don’t need to keep their eyes open as long.
Precise: 5D eye tracking
Treatment success is enhanced by SCHWIND’s proprietary active 5D eye tracker which enables a unique level of precision. It is linked to the SCHWIND diagnostic systems and captures all eye motion (static as well as dynamic) during the procedure, for outstanding outcomes.

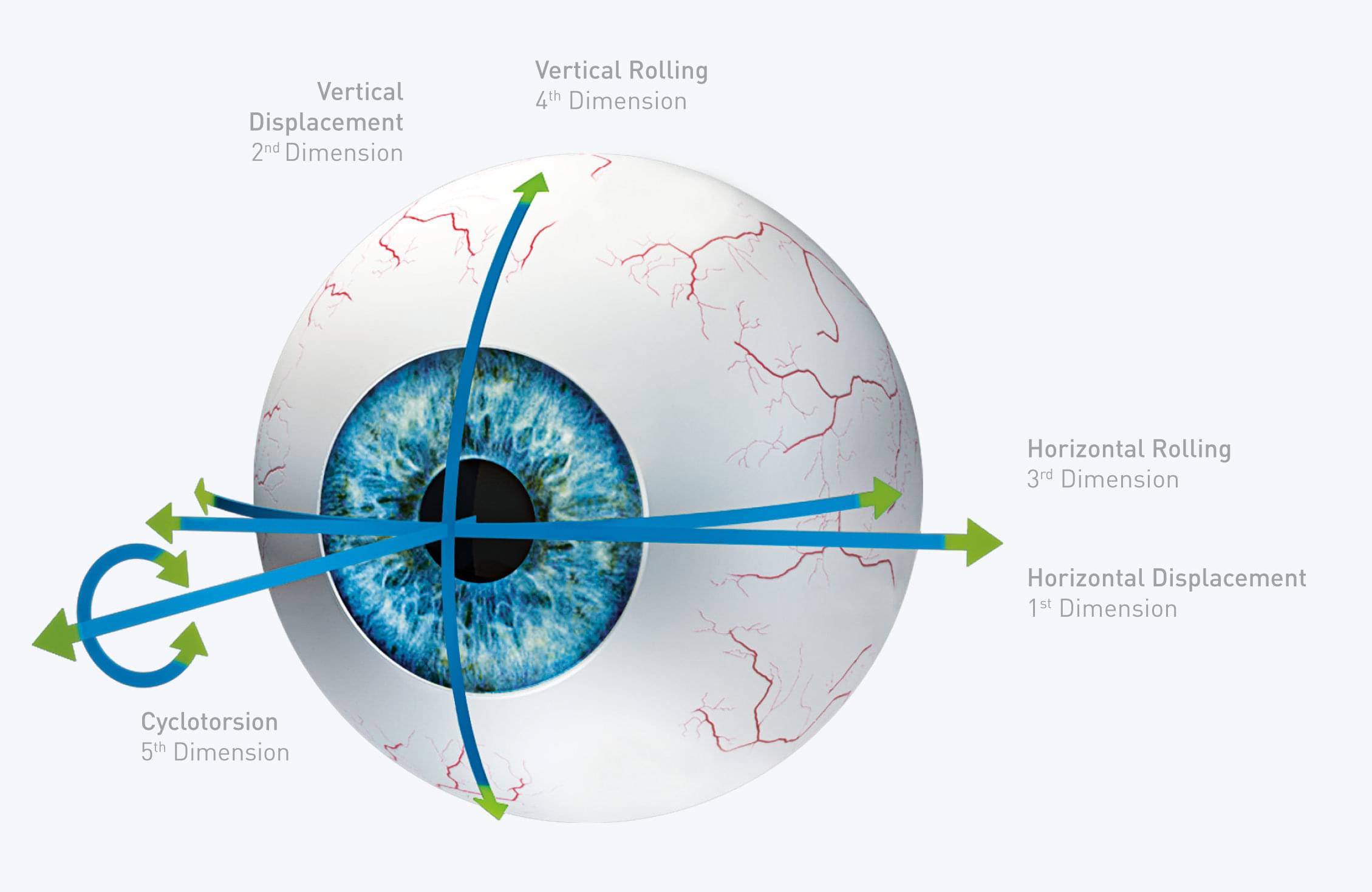

During the procedure, it precisely determines and compensates for the following eye movement dimensions:
1. X-axis
2. Y-axis
3. Horizontal rolling
4. Vertical rolling
5. Eye rotation around the visual axis: static and dynamic cyclotorsion
Changes in pupil size are detected, and the laser is adjusted as necessary. In conjunction with the 5D eye tracker, this automatic function ensures correct centring throughout the procedure.

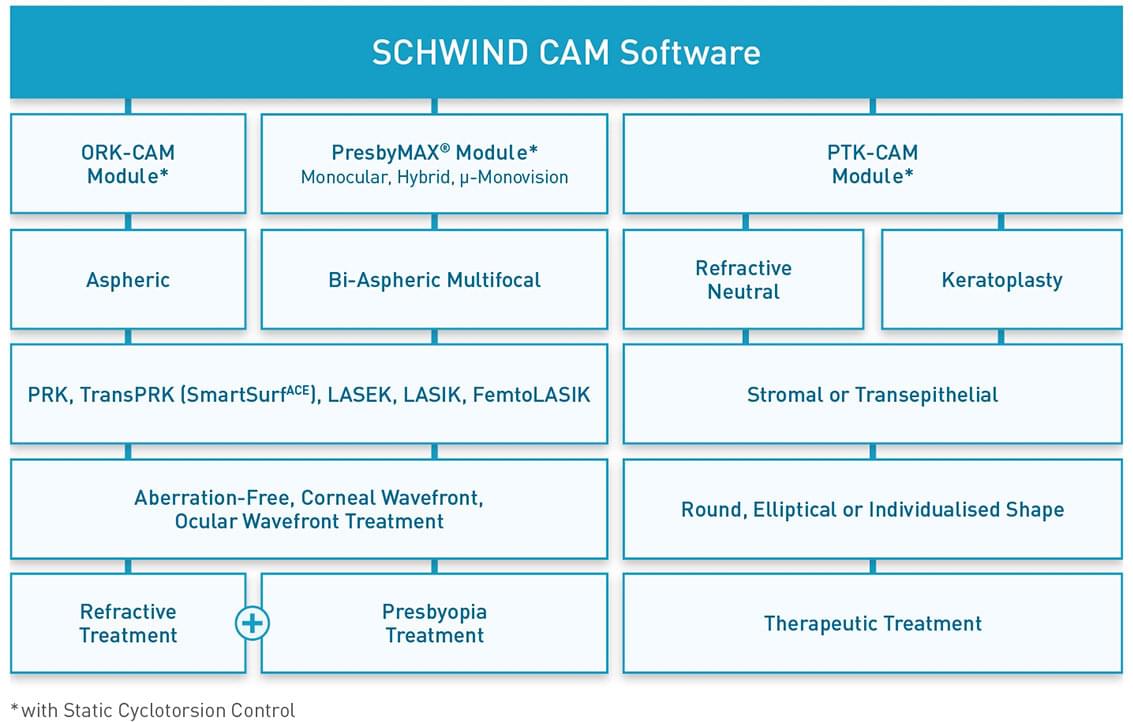

Versatile: SCHWIND CAM
The modular SCHWIND CAM software facilitates optimum treatment planning for a very wide range of applications in refractive and therapeutic corneal surgery. SCHWIND CAM takes into account all diagnostic data, including corneal wavefront, ocular wavefront and pachymetry (central cornea thickness).
The software modules are:
- ORK-CAM for refractive corneal surgery
- PresbyMAX for presbyopia treatment
- PTK-CAM for therapeutic corneal surgery
The KPL (keratoplasty) option in PTK-CAM supports safe and precise corneal transplants for patients for whom perforating keratoplasty is indicated.
Touch-free and gentler to the eye: SCHWIND SmartSurfACE
The SCHWIND AMARIS family works with all common treatment methods. This includes SCHWIND’s innovative SmartSurfACE technology. SmartSurfACE combines the benefits of touch-free TransPRK surface treatment with innovative SCHWIND SmartPulse technology.
In TransPRK, vision is precisely corrected through the top layers of the cornea, gently and without touching the eye. It works without suction, cut or incision. SmartPulse leaves the cornea surface smoother after lasering, accelerating the healing process. The patient experiences more comfortable treatment and faster recovery.
